OEM LED modules: design and manufacturing with optional BLE or ISM connectivity
An OEM LED module must fit the product’s geometry, power supply and communication requirements. INVENTRONICS designed and manufactured custom LED modules from electronics concept to series production, with optional BLE or ISM connectivity.
The project family at a glance
The family included rectangular, linear, combined and round designs. Power variants comprised CV DC, CC DC and versions powered directly from 230 VAC with an integrated supply. Selected designs could include BLE or ISM for wireless lighting control.
These are separate design variants selected for the application, not switchable power modes on one universal board. The common feature was electronics design based on the customer’s concept, combined with manufacturing at INVENTRONICS.
| Project fact | Confirmed scope |
|---|---|
| Product family | Custom LED modules for OEM customers rather than one universal module. |
| Geometry | Rectangular, linear, combined and round designs. |
| Power variants | Separate CV DC, CC DC and 230 VAC designs with an integrated power supply. |
| Communication | Optional BLE or ISM integration for wireless lighting control. |
| Manufacturing and inspection | Electronics design, SMT/THT assembly and AOI optical assembly inspection. |
Key outcome: INVENTRONICS combined design and manufacturing for a multi-variant family of LED modules tailored to OEM product concepts.
The OEM customers’ challenge
Manufacturers needed a partner able to develop and manufacture non-standard LED modules. Different shapes and power arrangements called for application-specific designs, connecting electronics decisions with their implementation in production.
Where a concept called for radio-based lighting control, optional communication had to be considered alongside electronics and power. The cooperation therefore extended beyond PCB assembly.
Tailoring a module to the customer’s product also considered thermal requirements, expected optical performance and dimensional constraints. These parameters served as design inputs for the individual variant.
Design decisions and variants
Engineering covered customer-specific electronics, power supply design and optional communication integration:
| Area | Variants in the family | Relevance to the design |
|---|---|---|
| Geometry | Rectangular, linear, combined structures and round | Matching the design to the OEM product concept. |
| Constant-voltage supply | CV DC | A module designed for a constant-voltage supply. |
| Constant-current supply | CC DC | A module designed for a constant-current supply. |
| Mains supply | 230 VAC with an integrated power supply | A design intended for direct mains power. |
| Communication | Optional BLE or ISM | Connectivity integration for wireless lighting control. |
BLE stands for Bluetooth Low Energy. ISM refers to radio frequency bands; the term alone specifies neither a particular frequency nor a protocol. Requirements for range, network topology and integration with other devices are established for the individual project.
INVENTRONICS’ scope of work
INVENTRONICS combined design and manufacturing activities:
- Engineering services and electronics design based on customer requirements and concepts.
- Design of CV DC, CC DC or direct 230 VAC variants with an integrated supply for the mains-powered versions.
- Integration of BLE or ISM communication where included in the module concept.
- Electronics manufacturing using surface-mount SMT and through-hole THT assembly.
- Automated optical inspection, AOI, for assembly inspection.
Combining design and manufacturing allowed each module to be considered in terms of both OEM product functions and series production.
Assembly inspection using AOI
Production included AOI, automated optical inspection of electronics assembly using images. It assesses board assembly separately from lighting parameters and finished-product operation.
For a new project, it is worth defining whether photometric measurements, functional or electrical tests are required and which criteria apply. This matches the verification plan to the module’s application.
Results: manufacturing across multiple variants
The outcome was a family of custom OEM LED modules in different geometries, DC variants and mains-powered designs, with optional wireless connectivity. INVENTRONICS combined electronics development with SMT/THT manufacturing and AOI assembly inspection, covering module development and series production.
OEM value and questions for a new project
One partner for design and production can simplify coordination of geometry, power and communication in the context of both product functions and manufacturing.
For a new project, it is worth preparing answers to a few questions:
- What space, geometry and mounting arrangement does the product allow?
- Is the required variant CV DC, CC DC or a 230 VAC design?
- Is wireless communication necessary, and what must the module communicate with?
- Which thermal and environmental conditions need to be considered?
- Which lighting parameters, acceptance tests and safety requirements need agreement?
- How far has the concept progressed, and what quantities and delivery dates are expected?
These answers establish the engineering and manufacturing scope. A mounting-space drawing and expected-function description provide a useful starting point for selecting the module variant.
Gallery of Manufactured Modules

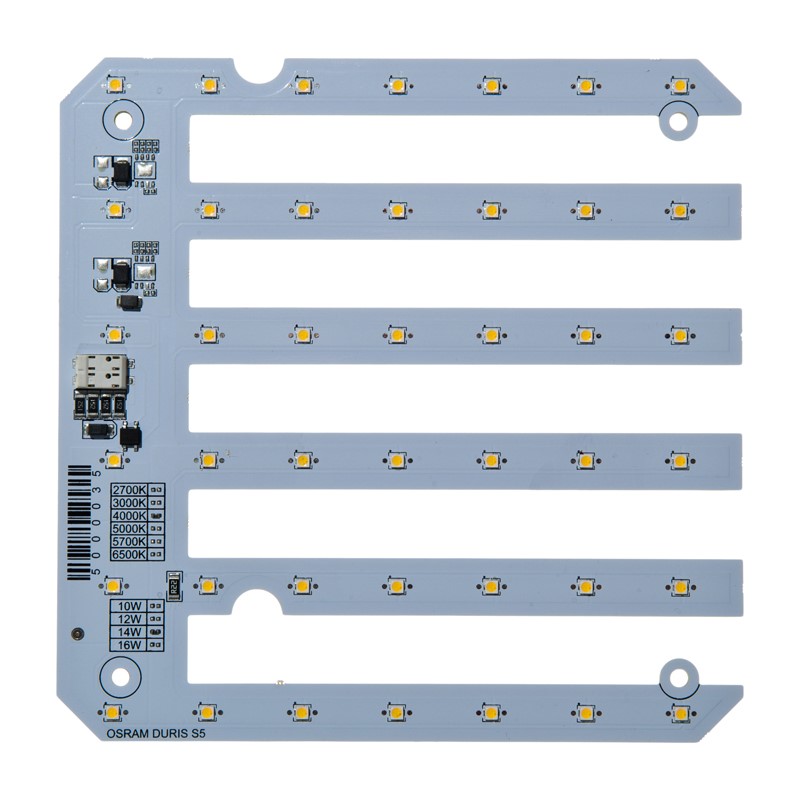

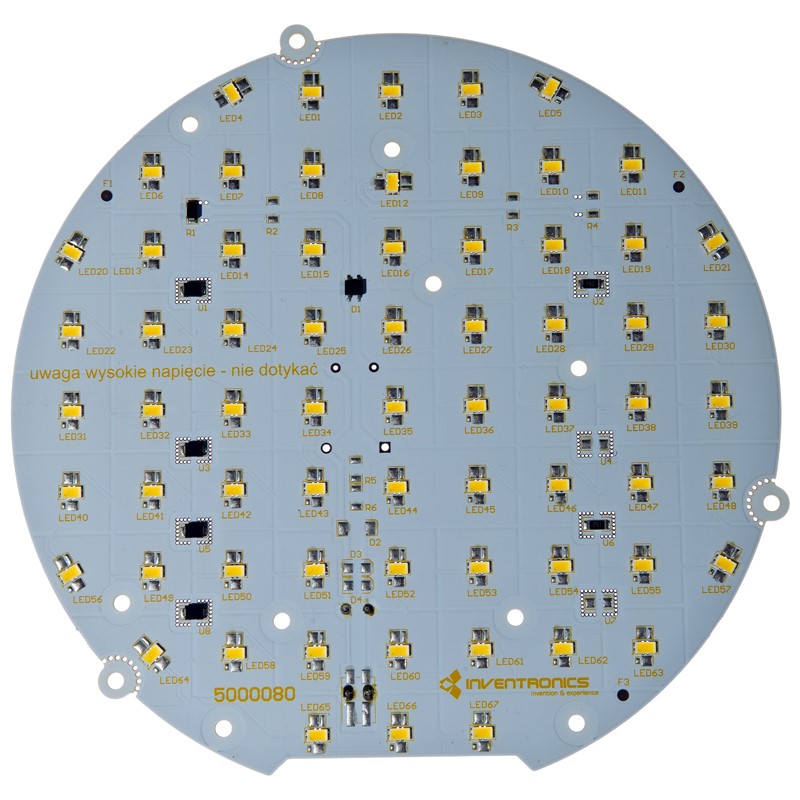

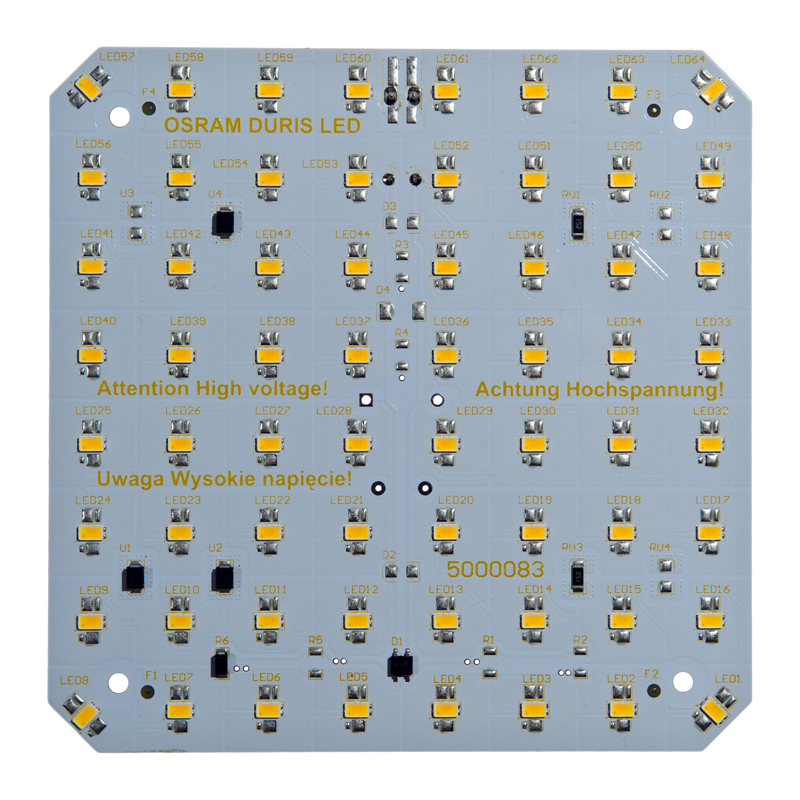

The images below show three manufactured designs from the LED module family: a round PCB with multiple LEDs, a comb-shaped linear PCB and a rectangular PCB with integrated components.
Need custom LED electronics for an OEM product? Contact INVENTRONICS with your geometry, intended power supply and communication requirements. These provide a starting point for discussing design, manufacturing and verification scope. For more on the manufacturing side, explore our EMS electronics manufacturing services.
